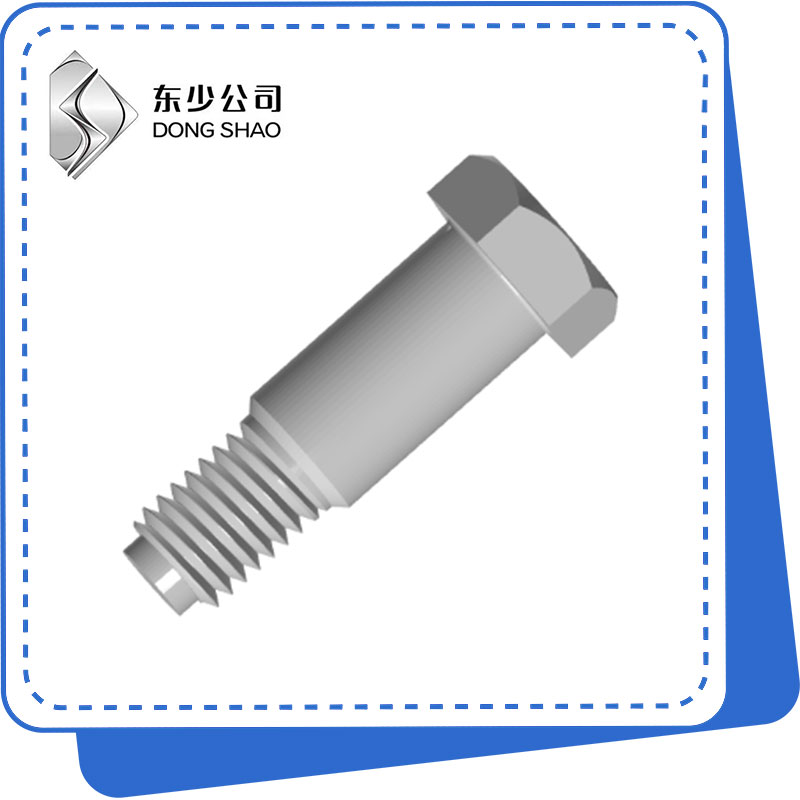

Hexagon Ku Fiican Bolts oo leh Bar Eey Dherer Leh

DONGSHAO waa mid ka mid ah hormuudka Shiinaha Hexagon Fit Bolts oo leh soosaarayaal, alaab-qeybiyeyaal iyo wax-soo-saarayaal dhaadheer leh.

Soo dir weydiin

Sharaxaada Alaabta

Hebei Dongshao Fastener Manufacturing Co., Ltd. waa alaab-qeybiye caan ah iyo soo saaraha dhalooyinka taam ee hexagon leh oo leh barta eeyaha dunta dheer ee Shiinaha.

Wax soo saarkeeda boolal hexagon taam leh oo leh barta eyga dunta dheer leh waxay leedahay sifooyinka soo socda:Xoojinta xoogga leh, waxay u adkeysan kartaa xiisad xoog leh, oo aad uga sareysa bolt hex-ga guud nolosha, waxay yarayn kartaa beddelka iyo kharashka dayactirka.

Kuwa soo socda ayaa ah qaar ka mid ah codsiyada caadiga ah ee boolal taam ah oo hexagon leh oo leh barta eyda dunta dheer: garoonka dhismaha, garoonka elektiroonigga ah, garoonka farsamada, garoonka qaab dhismeedka birta, warshadaha baabuurta, iwm.

Halbeegga Alaabta

(mm)	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M36	M42	M48
P	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
b max	11.5	14.5	17	19	23	26	28	29	32	35	38	46	50	59	63
b min	9.5	12.5	15	17	21	24	26	27	30	33	36	44	48	57	61
ds max	7	9	11	13	15	17	19	21	23	25	28	32	38	44	50
ds min	6.964	8.964	10.957	12.957	14.957	16.957	18.948	20.948	22.948	24.948	27.948	31.938	37.938	43.938	49.938
max	10	13	16	18	21	24	27	30	34	36	41	46	55	65	75
s min	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	53.8	63.8	73.1
k min	3.85	4.85	5.85	6.82	7.82	8.82	9.82	10.78	11.78	12.78	14.65	16.65	19.58	22.58	25.58
ku max	4.15	5.15	6.15	7.18	8.18	9.18	10.18	11.22	12.22	13.22	15.35	17.35	20.42	23.42	26.42
r min	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1.2	1.6
dp	4	5.5	7	8.5	10	12	13	15	17	18	21	23	28	33	38
z	1.5	1.5	2	2	3	3	3	4	4	4	5	5	6	7	8
e min	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98	45.2	50.85	60.79	72.02	82.6
