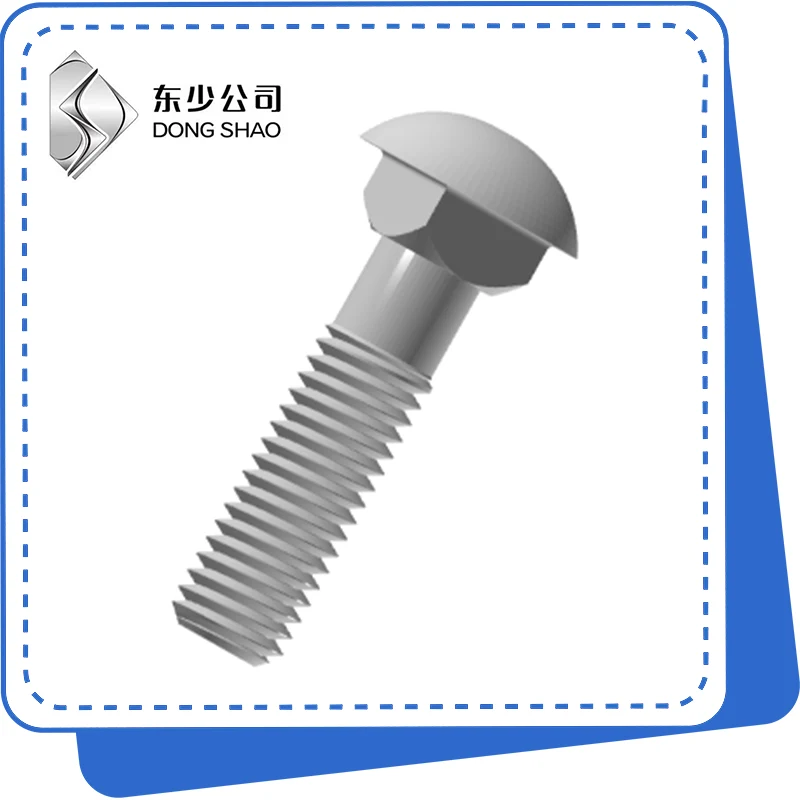

Semi-wareega Head Square Bolts qoorta

Sida mid ka mid ah soosaarayaasha xirfadleyda ah ee Shiinaha, DONGSHAO waxay jeclaan lahayd inay ku siiso Semi-round Head Square Neck Bolts. Oo waxaan ku siin doonaa adeegga ugu fiican ka dib-iibka iyo keenista waqtiga.

Soo dir weydiin

Sharaxaada Alaabta

Hebei Dongshao Fastener Manufacturing Co., Ltd. waa alaab-qeybiye caan ah oo soo saara Semi-round Head Square Neck Bolts gudaha Shiinaha. madaxa qoorta labajibbaaran boolal ahama birta badhkii madax laba jibbaaran boolal qoorta labajibbaaran;Waxay leedahay shaqo adag oo xasilloon, adeeg nolol dheer iyo rakibid degdeg ah; Naqshad qurux badan oo madax wareeg ah oo badhkeed ah, oo ku habboon mashaariicda injineernimada ee u baahan muuqaal wanaagsan;Daawaynta dusha sare ee heer sare ah, ka-hortagga oksaydhka, xidhashada, ka-hortagga daxalka, oo ku habboon dhammaan noocyada deegaanka qallafsan.

Qiyaasta-wareega-wareega ah ee Head Square Qoorta Bolts

(mm)	M6	M8	M10	M12	M14	M16	M20
P	1	1.25	1.5	1.75	2	2	2.5
dk max	13.1	17.1	21.3	25.3	29.3	33.6	41.6
dk min	11.3	15.3	19.16	23.16	27.16	31	39
k1 max	4.4	5.4	6.4	8.45	9.45	10.45	12.55
k1 daq	3.6	4.6	5.6	7.55	8.55	9.55	11.45
ku max	4.08	5.28	6.48	8.9	9.9	10.9	13.1
k min	3.2	4.4	5.6	7.55	8.55	9.55	11.45
max	6.3	8.36	10.36	12.43	14.43	16.43	20.52
s min	5.84	7.8	9.8	11.76	13.76	15.76	19.22
r min	0.5	0.5	0.5	0.8	0.8	1	1
ds max	6	8	10	12	14	16	20
ds min	5.35	7.19	9.03	10.86	12.70	14.70	18.38
